Pearl-MM Relay Output Module Relay Output PC/104 Module
Diamond Systems
Pearl-MM is a PC/104 format industrial control module with 16 relays. The relays have PDT (form C) configuration.
Diamond Systems

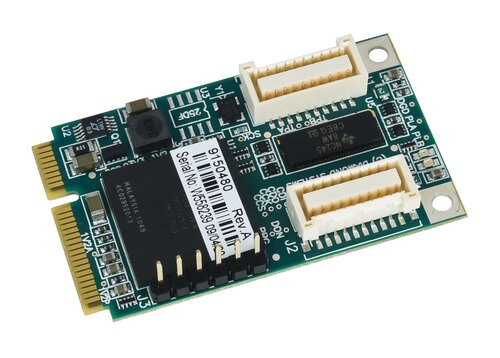

DS-MPE-GPIO 36 Channel Digital I/O PCIe MiniCard
The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is ideal for digital I/O expansion in embedded and OEM applications.
An FPGA provides 36 buffered digital I/O lines that can be configured to operate in simple I/O mode in the form of 8-bit and 4-bit ports, or in counter/timer and pulse width modulator modes. Two ports are fixed digital I/O ports with programmable direction in 8-bit groups. One port can operate as either a 4-bit DIO or 4 counter/timers with 1 input and 1 output per counter. One port can operate as either 8 DIO or up to 8 pulse width modulators.
Extended temperature operation of -40°C to +85°C enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations.
The DS-MPE-GPIO product comes with the 36-channel PCIe MiniCard digital I/O module, the CK-DAQ02 cable kit with two digital I/O cables, and a hardware kit with mounting screws.
Diamond Systems
Diamond Systems Corporation är en ledande leverantör av robusta inbyggda datorlösningar. Företaget grundades 1989 och har sitt huvudkontor i Kalifornien, och är specialiserat på att designa och tillverka inbyggda datorprodukter som är skräddarsydda för att möta de unika behoven inom industri-, transport- och flygsektorerna.
Diamond Systems erbjuder ett brett utbud av högkvalitativa produkter, inklusive enkortsdatorer, datainsamling, kontrollsystem och robust PC/104 och PC/104-Plus kringutrustning. Dessa lösningar är konstruerade för att leverera tillförlitlig prestanda i utmanande miljöer, vilket gör dem idealiska inom industriell automation, maskinkontroll och medicinsk utrustning.
Läs mer: Diamond Systems
Liknande produkter
-
-
Onyx-MM-DIO Low-Cost 48-Line Digital I/O PC/104 Module
Diamond Systems
Onyx-MM-DIO has 48 digital I/O lines using 2 82C55 ICs. Each chip has 24 I/O lines organized as three 8-bit ports, A, B, and C.
-
IR104-PBF High Density Optoisolated Input + Relay Output PC/104 Module
Diamond Systems
IR104-PBF is a high-density PC/104 format digital I/O module designed for industrial applications requiring isolation between the computer and the external signals it is monitoring and controlling.
-
Opal-MM-1616 - 16 Optoisolated Input & 16 Relay Output PC/104 Module
Diamond Systems
Opal-MM-1616 is a PC/104 format digital I/O module designed for industrial applications requiring isolation between the computer and the external signals it is monitoring and controlling.
