Mean well

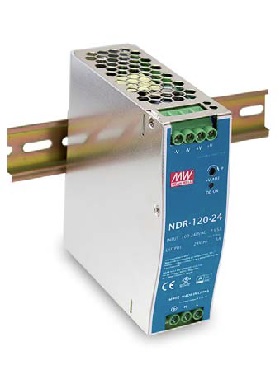

NDR-120 Nätaggregat 120W

NDR series is one economical slim DIN rail power supply series from Mean Well, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. The series is designed with metal housing that enhances the unit´s power dissipation. With working efficiency up tp 89%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make the NDR series a very competitive power supply solution for industrial applications.

Manufacturer

Mean well

DIN-rail

Yes

Output Voltage

12VDC; 24VDC; 48VDC

Rated power

120W

Produktblad

NDR-120-SPEC.PDF

Supply voltage

Single phase
