Mean well

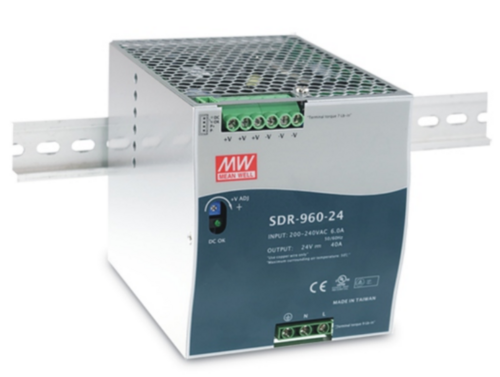

SDR-960 Nätaggregat 960W

Features Single phase 180~264VAC input range 110mm slim design 94% high efficiency 130% peak load capability for 3 seconds Built-in active PFC function Built-in parallel function, current sharing up to 4 units Protection: Short circuit / Overload(C.C. mode, shut down after 3 seconds) / Over voltage / Over temperature Fan-less design, cooling by free air convection DC OK relay contact Front panel DC voltage adjustment Installed on DIN rail TS-35 / 7.5 or 15 LED indicator for power on Certificates: UL / CUL / TUV / CB / CE Dimension(WxHxD): 110x 125.2x 150mm 3 years warranty

Manufacturer

Mean well

DIN-rail

Yes

Output Voltage

24VDC; 48VDC

Rated power

960W

Produktblad

Supply voltage

Single phase
